MLA20RPDC

Base price: $400.00

Features

  • Small Form Factor
    • 2.5"  x 0.75" x 0.875" (not including connectors)
  • Low Noise Figure
    • 2.1 dB NF typical at GPS L1.
  • Wide Accepted Frequency Range
    • Accepts signals from the entire L-Band, covering all major GNSS constellations.

Description

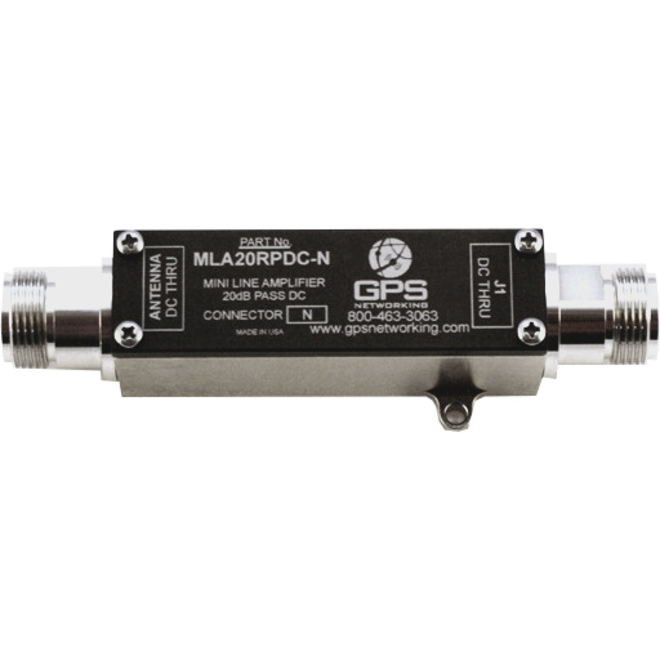

This Mini Line Amplifier 20dB Regulated Pass DC (MLA20RPDC) is an active one input, one output amplifier optimized for GPS applications. This equipment accepts signals covering all major GNSS constellations with excellent gain flatness and a low L1 noise figure. In the standard configuration, the J1 port accepts DC voltage from a connected GPS receiver. This voltage is regulated and used to power the internal amplifiers while unregulated voltage is passed through the antenna port to power a connected active antenna or other upstream devices.


Use Cases

  • As an in-line amplifier to negate the insertion loss of a long cable run.
  • To add amplification to a signal provided by a passive antenna.
Required

Connector Type

Connector Type is required. All connectors are female.

Optional

Weatherproofing ($100)

Hermetically Sealed ($100)

EMI Shielding ($150)

Note: EMI Shielding includes Weatherproofing.


$400.00
Add To Cart
Call or email us regarding quantity discounts on 5 or more items at 1-800-463-3063 or SALES@GPSNETWORKING.COM
