MIL-NLDCBS1x3

MIL-NLDCBS1x3
$2,000.00

Features

  • Excellent Gain Flatness
    • 0.5 Typical
  • Military Qualified
    • Tested to MIL-STD-810D, MIL-STD-461C, and MIL-STD-462.
  • Dependable
    • Used on military rotorcraft for over 25 years.

Description

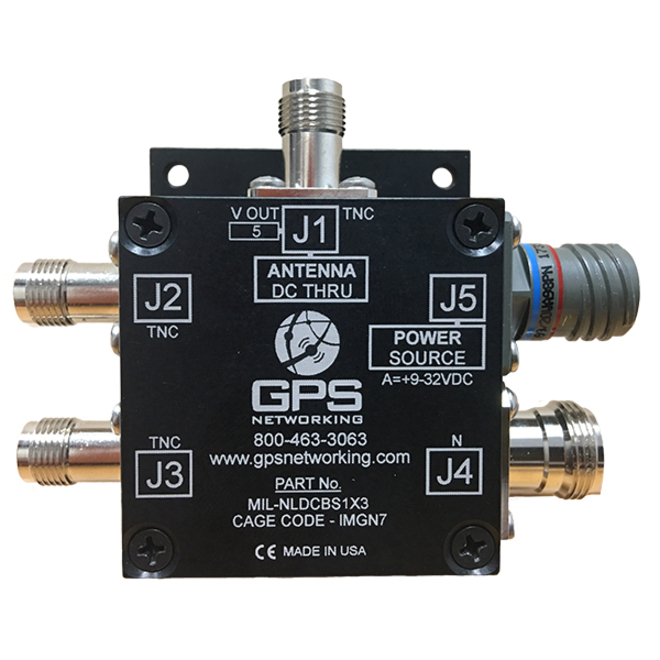

This Military Qualified Networked Loaded DC Blocked Splitter 1X3 (MIL-NLDCBS1X3) is a one input, three output device. The frequency response covers GPS L1, L2, L5, Galileo, and GLONASS bands with excellent gain flatness. The unit is completely MIL Qualified. It will accept any DC voltage from 8-32 VDC which is regulated down to 5VDC to power the GPS Antenna. The 5 VDC is sent to the antenna via the center conductor on the antenna port. The RF outputs (J2, J3, and J4) are DC Blocked. J2 and J3 ports are TNC connectors and the J4 port is a type N Connector.

Use Cases

  • Splitting a roof antenna signal between 3 GPS/GLONASS/GNSS receivers.
  • Splitting a WAAS antenna between WASS receiver and ADS-B.
Call or email us regarding quantity discounts on 5 or more items at 1-800-463-3063 or SALES@GPSNETWORKING.COM
