LNFA1X4

Features

• Amplified Unity Gain 0dB typical
• L1 GPS Filtered
• Low Noise

Description

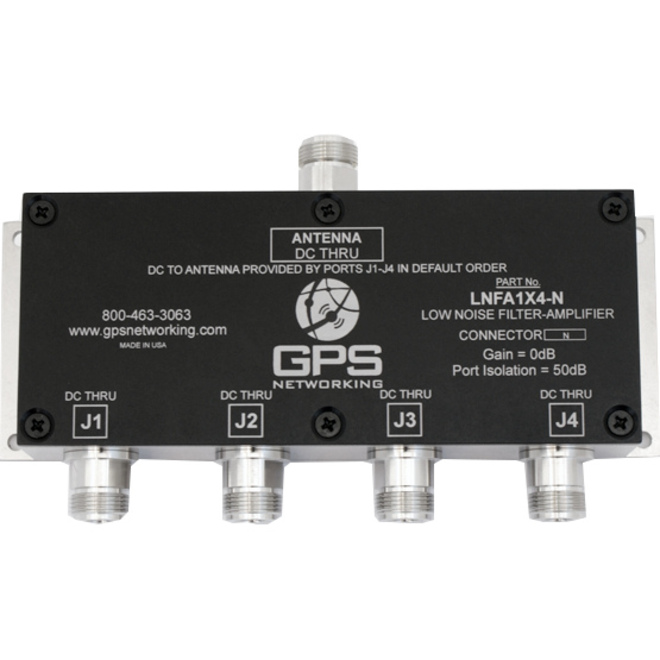

This Low Noise Filtered Amplified 1X4 (LNFA1X4) splitter is a one input, four output device with 0dB
nominal gain. The device features a low noise input section to establish an overall system noise figure. Excellent port-to-port isolation and unity gain are achieved by padded outputs. The device features excellent frequency selectivity around the L1 band to prevent interference from other high power radio frequency sources, such as cellular transmitter stations. The LNFA1X4 device will power itself and an external GPS antenna from a 5.0 VDC source connected on any of the RF Outputs. A “pick and choose” circuit is used to select only one DC input for power in the event that more than one 5v source is connected. The remaining DC inputs are switched to a 200Ω resistor to simulate antenna current draw.

Use Cases

• Splitting and amplifying a roof antenna signal between 4 GPS/GLONASS/GNSS receivers.

• Splitting and amplifying WAAS antenna between WASS receiver, ADS-B, and 2 other devices.
