LA30RPDC

Add To Cart
Base price: $450.00

Features



  • High Output Gain
    • 30 dB gain is typical across all operating frequencies.
  • Customizable Fixed Output Gain
    • Customizable gain from 1 dB to 30 dB.
  • Wide Accepted Frequency Range
    • Accepts signals from the entire L-Band, covering all major GNSS constellations.

Description

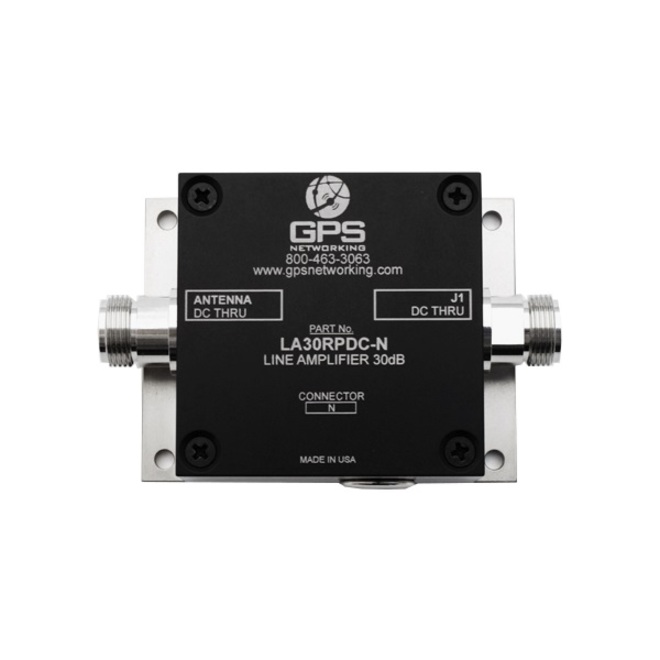

This Line Amplifier 30dB Regulated Pass DC (LA30RPDC) is an active one input, one output amplifier optimized for GPS applications. This equipment accepts signals covering all major GNSS constellations with excellent gain flatness. In the standard configuration, the J1 port accepts DC voltage from a connected GPS receiver. This voltage is regulated and used to power the internal amplifiers while unregulated voltage is passed through the antenna port to power a connected active antenna or other upstream devices.
In the Networked (Externally Powered) configuration, the output (J1) is DC Blocked, and a customer-defined output voltage is provided via the antenna port. Custom gain, DC power, and connector configurations are available upon request.

Use Cases

  • As an in-line amplifier to negate the insertion loss of a long cable run.
  • To add amplification to a signal provided by a passive antenna.
Required

Connector Type

Connector Type is required. All connectors are female.

Options

Weatherproofing ($100)

Hermetically Sealed ($100)

EMI Shielding ($150)

Note: EMI Shielding includes Weatherproofing.

Networking - External Power Supply ($100)

If purchasing this add-on, please also select source and output options.

Output (Voltage to the Antenna)

You will also need to purchase the Networking option above.

Source (Power Option)

You will also need to purchase the Networking option above.

CLICK HERE FOR DETAILS ON POWER OPTIONS

$450.00
Add To Cart
Call or email us regarding quantity discounts on 5 or more items at 1-800-463-3063 or SALESTECH@GPSNETWORKING.COM
