L1/L2GPNRRKIT

L1L2GPNRRKIT
Base price: $900.00

This product is only to be used for testing GNSS equipment/systems for the purpose of product development or fabrication.

Per the latest FCC guidance, the following use cases are NOT allowed:

  • Fire Stations & First Responders
  • Aircraft Repair and Maintenance
  • Truck Repair and Maintenance
  • Any other usages which could be considered "maintenance".

An FCC Experimental Broadcast license is required to operate this device, with the following exceptions:

  • Device is operated in a shielded environment, such as an anechoic chamber.
  • Device is operated in conjunction with a reradiating hood.
  • Device is operated by federal or DoD personnel with the approval of the local spectrum manager.

Click Here for assistance calculating your re-radiating kit link budget and applying for your experimental license.

Features

  • Re-Radiating Amplifier with External Power Supply
    • 30 dB gain typical.
  • Optional Kit Mounting Hardware
    • Re-Radiating Amplifier Mount available.
  • Optional Variable Gain Amplifier
    • Adjustable gain from 1 dB to 25 dB.
  • Optional Variable Gain Amplifier with LCD Screen
    • Adjustable gain from 1 dB to 30 dB.

Description

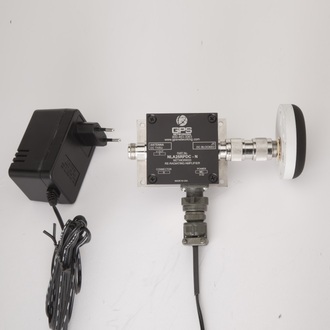

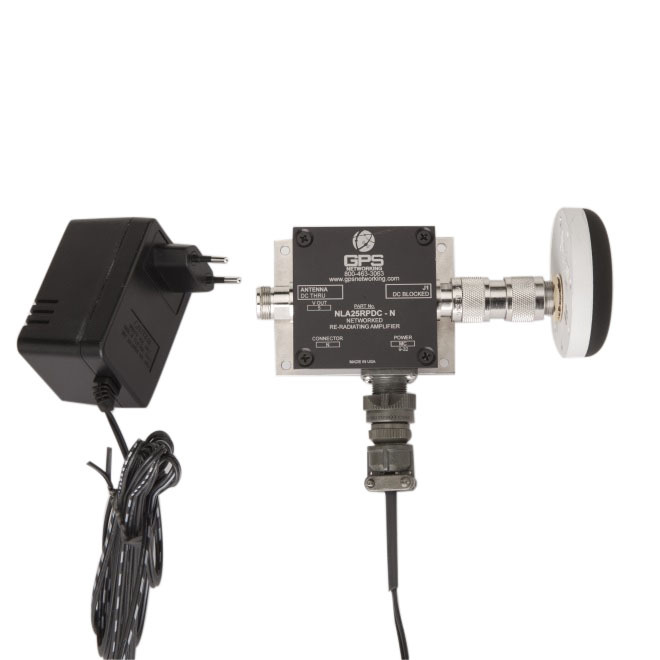

The L1/L2G Portable Networked Re-Radiating Kit (L1/L2GPNRRKIT) is a re-radiating kit that is designed for deployments where a full L-band antenna is already in place. The L-band signal received by the previously installed roof antenna is amplified and re-radiated to GPS receivers inside of a denied space using the passive re-radiating antenna. The L1/L2GPNRRKIT consists of a passive re-radiating antenna and a re-radiating amplifier (L1/L2GPNRRKAMP) with an external power supply that powers the entire system. A cable from the roof antenna to the re-radiating kit is required and can be purchased separately.
In the standard Networked (Externally Powered) configuration, the re-radiating amplifier output (J1) is DC Blocked while the antenna port will receive the RF signal and pass the customer selected voltage (3.3 to 15 VDC). Custom gain, DC power, and connector configurations are available upon request.


Use Cases

  • To re-radiate signal indoors for GPS product testing.



Please note that the L1/L2GPNRRKIT does not include antenna mounts.

CLICK HERE TO BROWSE ANTENNA MOUNTS.

Required

Connector Type

Connector Type is required. All connectors are female.

Output (Voltage to the Antenna)

Source (Power Option)

 CLICK HERE FOR DETAILS ON POWER OPTIONS

Optional

Weatherproofing ($100)

Variable Gain ($100)

Not compatible with Weatherproofing option.

LCD Display ($100)

Not compatible with Weatherproofing option.


$900.00
Add To Cart
Call or email us regarding quantity discounts on 5 or more items at 1-800-463-3063 or SALES@GPSNETWORKING.COM
