DRMALDCBS2X32

Features

• Two Antenna Input
• Excellent Gain Flatness
• [J1-J16] <1.5dB
• Extremely Flat Group Delay
• Amplified 14dB gain typical
• DC Blocked Outputs Feature 200 ohm Loads
• LED Power Light
• -48VDC Power Option Available
• High Isolation Option
• >35dB of isolation between adjacent output ports
• Phase Matched Outputs
• Phase (J1 – J32) < 1.0°
• Durable Rugged Standard 3U Chassis

Description

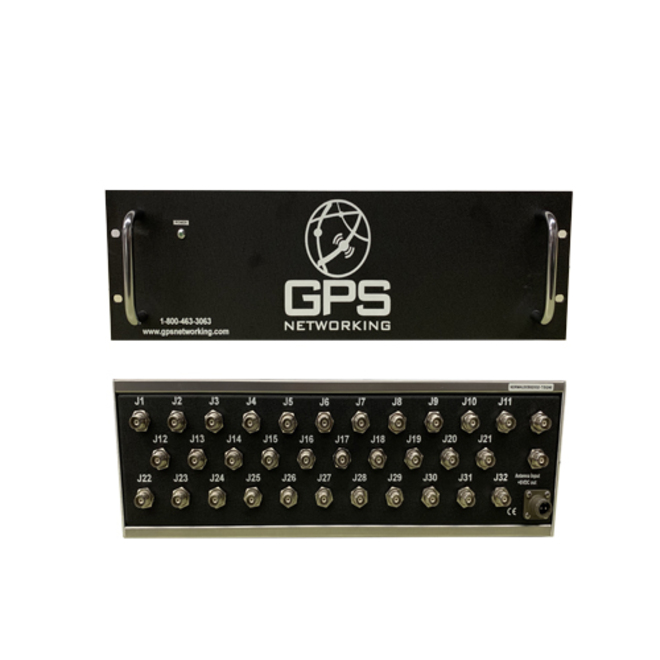

The DRMALDCBS2X32 GPS Rack Mount Amplified Splitter is a TWO input, thirty-two output device with –2dB max signal loss. The frequency response covers the GPS L1 & L2 bands with excellent gain flatness. In the normal configuration, the splitter is powered by a transformer that supplies power to the splitter’s amplifier and roof antenna. The outputs are DC loaded with a 200Ω resistor to simulate the antenna current draw. This product is ideally suited for timing and testing applications where the GPS carrier signal is required by up to 32 GPS devices simultaneously.
