DRMALDCBS2X16

DRMALDCBS2X16
Add To Cart
Base price: $2,800.00

Features

  • Two Antenna Input
  • Excellent Gain Flatness
    • [J1-J16] <1.5dB
  • Extremely Flat Group Delay
  • Amplified 14dB gain typical
  • DC Blocked Outputs Feature 200 ohm Loads
  • LED Power Light
  • -48VDC Power Option Available
  • High Isolation Option
    • >35dB of isolation between adjacent output ports
  • Phase Matched Outputs
    • Phase (J1 – J16) < 1.0°
  • Durable Rugged Standard 3U Chassis

Description

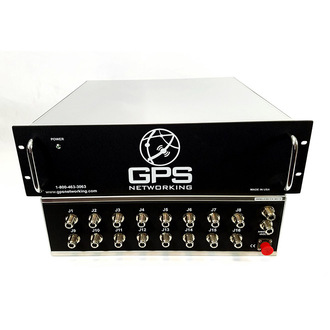

The DRMALDCBS2X16 GPS Rack Mount Amplified Splitter is a TWO input, sixteen output device. The frequency response covers the GPS L1 & L2 bands with excellent gain flatness. In the normal configuration, the splitter is powered by a receiver connected on J1 that supplies power to the splitter’s amplifier and roof antenna. The outputs are DC loaded with 200Ω resistors to simulate the antenna current draw. Product is ideal for timing and testing applications where the GPS carrier signal is required by up to 16 GPS devices simultaneously.

Required

Connector Type

Connector Type is required. All connectors are female.

Optional

Hi-Isolation ($100)

Networking - External Power Supply ($100)

If purchasing this add-on, please also select source and output options.

Output (Voltage to the Antenna)

You will also need to purchase the Networking option above.

Source (Power Option)

You will also need to purchase the Networking option above.

CLICK HERE FOR DETAILS ON POWER OPTIONS

$2,800.00
Add To Cart
Call or email us regarding quantity discounts on 5 or more items at 1-800-463-3063 or SALESTECH@GPSNETWORKING.COM
