DCB

Features

• Blocks DC voltage
• Small Form Factor
• 2.5 x 0.75 x 0.875 in. (not including connectors).
• Low Insertion Loss < 1.0dB typical

Description

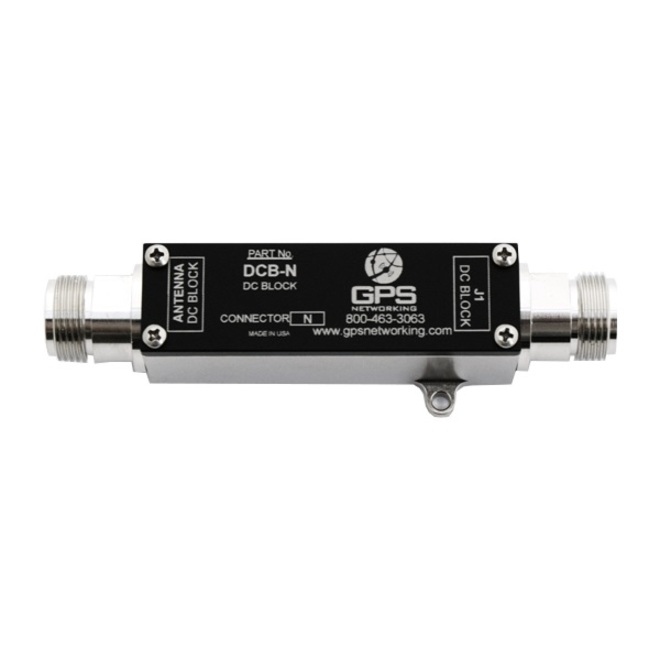

The DCB GPS DC Block (GNSS DC Block) is a one input, one output device that is designed to block unwanted DC voltage anywhere in a system network. The DCB features a miniaturized housing for use when small form factors are required. The frequency response covers the GPS L1, L2, L5, Galileo and GLONASS frequencies (entire L-band) with excellent flatness. In the normal configuration, the RF input and output will block DC from both the input and output.

Use Cases

• Block unwanted DC voltage anywhere in a system network.

• Protecting expensive receivers by blocking the DC path from the antenna.
