CPDC4X1

CPDC4x1
Add To Cart
Base price: $400.00

Features

  • Precise Amplitude Balance
    • Less than 1 dB variation between ports.
  • Flat Group Delay
    • Less than 1ns variation between L1 and L2.
  • Low Insertion Loss
    • -4.0 dB loss is typical across all operating frequencies.

Description

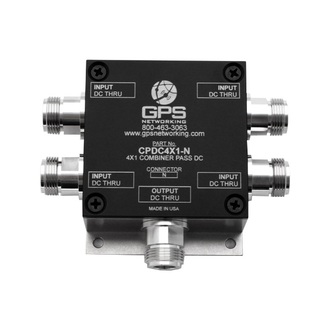

The CPDC4X1 GPS Combiner (GNSS Combiner) is a four input, one output device. The frequency response covers the entire L-band (all GNSS Frequencies) with excellent flatness. In the standard configuration, DC is passed from a connected GPS device through the combiner to all inputs (antenna ports). The connected GPS device or receiver will continue to maintain a GPS lock in the
event of an antenna failure. Contact GPS Networking Technical Support for any questions regarding standard configurations or special configurations at salestech@gpsnetworking.com or 1-800-463-3063.


Use Cases

  • Combining a signal from four GPS antennas to provide redundancy in case of antenna failure
  • Combining a signal from four GPS antennas to protect against environmental interruptions
Required

Connector Type

Connector Type is required. All connectors are female.

Optional

Weatherproofing ($100)

EMI Shielding ($150)

Note: EMI shielding includeds Weatherproofing.

Hermetically Sealed ($100)

Networking - External Power Supply ($100)

To purchase the Networking option, you will also need to select Source and Output options below.

Output (Voltage to the Antenna)

You will also need to purchase the Networking option above.

Source (Power Option)

You will also need to purchase the Networking option above.

CLICK HERE FOR DETAILS ON POWER OPTIONS

$400.00
Add To Cart
Call or email us regarding quantity discounts on 5 or more items at 1-800-463-3063 or SALES@GPSNETWORKING.COM
