ALDCBS1X4

ALDCBS1x4
HIALDCBS1x4
Add To Cart
Base price: $500.00

Features

  • Flat Group Delay
    • Less that 1ns variation between L1 and L2.
  • Matched Phase Balance
    • Less than 4° of variation between ports.

Description

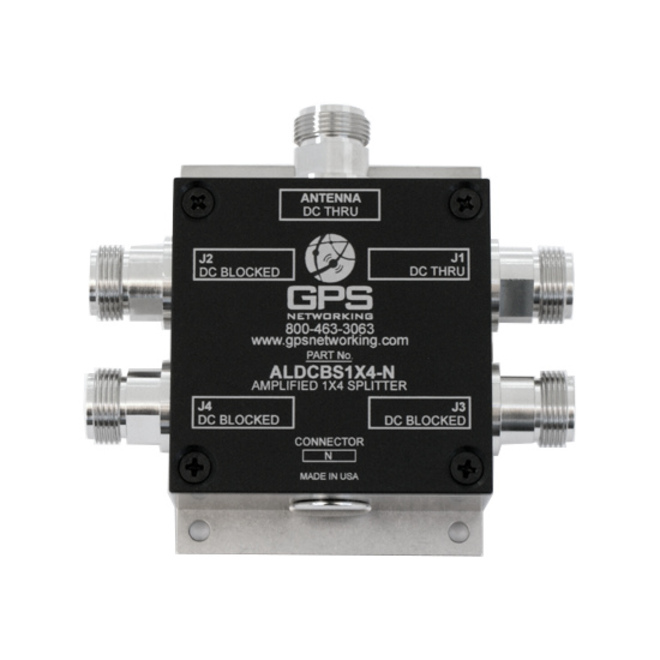

This Amplified Loaded DC Blocked Splitter 1X4 (ALDCBS1X4) is an active one input, four output RF splitter that splits signals from 1.1 GHz to 1.7 GHz. This equipment is designed to amplify and split signals within the L-band to provide multiple devices with the signal from a single antenna. In the standard configuration, the J1 port will pass DC voltage from a connected device and pass this power to the antenna or other devices upline from the splitter via the antenna port. The other ports (J2-J4) are DC blocked and loaded with 200Ω resistors to simulate antenna current draw which prevents antenna alarm faults. Custom gain configuration, DC configuration, and connector configuration are available upon request.

Use Cases

  • Splitting and amplifying a roof antenna signal between 4 GPS/GLONASS/GNSS receivers.
  • Splitting and amplifying WAAS antenna between WAAS receiver, ADS-B, and 2 other devices.

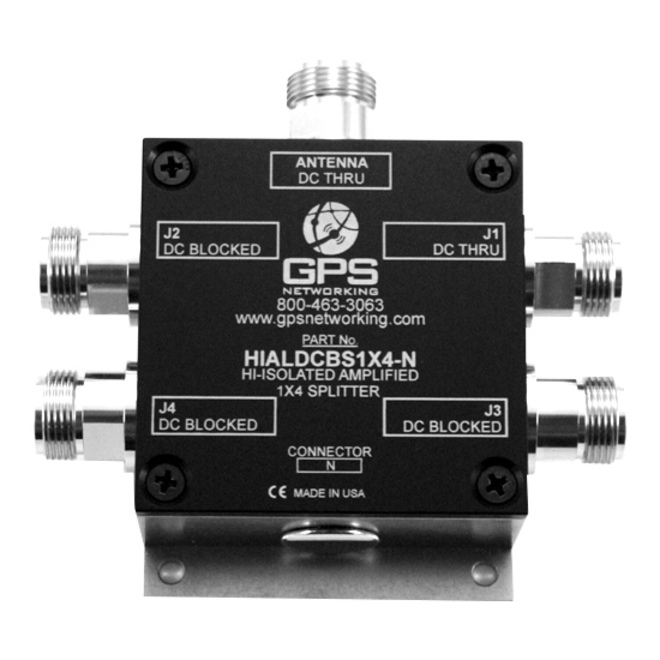

Please see this datasheet for the High Isolation variant.

Required

Connector Type

Connection Type is required. All connectors are female.

Optional

Weatherproofing ($100)

Hi-Isolation ($100)

Hermetically Sealed ($100)

EMI Shielding ($150)

Note: EMI Shielding includes Weatherproofing.

Networking - External Power Supply ($100)

If purchasing this add-on, please also select source and output voltage.

Output (Voltage to the Antenna)

You will also need to purchase the Networking option above.

Source (Power Option)

You will also need to purchase the Networking option above.

CLICK HERE FOR DETAILS ON POWER OPTIONS

$500.00
Add To Cart
Call or email us regarding quantity discounts on 5 or more items at 1-800-463-3063 or SALESTECH@GPSNETWORKING.COM
