L1/L2GHNRRKIT

L1/L2GHNRRKIT
Base price: $1,500.00

Features

  • High Gain Amplified Roof Antenna
    • Provides 40 dB gain via internal LNA.
  • Re-Radiating Amplifier with External Power Supply
    • 30 dB gain typical.
  • Optional Kit Mounting Hardware
    • Roof Antenna Mount & Re-Radiating Amplifier Mount available.
  • Optional Re-Radiating Variable Gain Amplifier
    • Adjustable gain from 1 dB to 30 dB.

Description:

The GPS Hangar Networked Re-Radiating Kit (L1/L2GHNRRKIT) comes with the components to build a re-radiating system that can re-radiate all the major GNSS frequencies indoors. The GNSS signals received by the roof antenna are amplified and re-radiated to GPS receivers indoors, eliminating the need to attach receivers directly to the roof antenna. The L1/L2GHNRRKIT consists of an active roof antenna, a passive re-radiating antenna, and a re-radiating amplifier (L1/L2GHNRRKAMP) with an external power supply that powers the entire system. A cable from the roof antenna to the re-radiating kit is required and can be purchased separately. With up to 150ft of LMR400 low loss coax cable connecting the roof antenna to the re-radiating amplifier, the L1/L2GHNRRKIT will transmit GNSS signals indoors to receivers up to 100 feet away.
In the standard Networked (Externally Powered) configuration, the re-radiating amplifier output (J1) is DC Blocked. Custom gain, DC power, and connector configurations are available upon request.


Use Cases

  • To re-radiate signal indoors for GPS product testing.
  • To maintain GPS signal for emergency vehicles parked indoors.

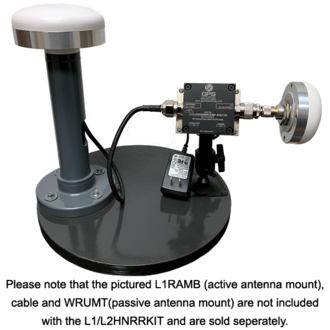

Please note that the L1/L2GHNRRKIT GPS Re-Radiating Kits do not include antenna mounts.

CLICK HERE TO BROWSE ANTENNA MOUNTS.

An FCC Experimental Broadcast license is required to operate this device, with the following exceptions:

  • Device is operated in a shielded environment, such as an anechoic chamber.
  • Device is operated in conjunction with a reradiating hood.
  • Device is operated by federal or DoD personnel with the approval of the local spectrum manager.

Click Here for assistance calculating your re-radiating kit link budget and applying for your experimental license.

Required

Connector Type

Connector Type is required. All connectors are female.

Output (Voltage to the Antenna)

Source (Power Option)

 CLICK HERE FOR DETAILS ON POWER OPTIONS

Optional

Weatherproofing (Add $100)

Variable Gain ($100)

Not compatible with Weatherproofing option.

LCD Display ($100)

Not compatible with Weatherproofing option.


$1,500.00
Add To Cart
Call or email us regarding quantity discounts on 5 or more items at 1-800-463-3063 or SALESTECH@GPSNETWORKING.COM
