L1/L2FPDC

L1L2FPDC
Add To Cart
Base price: $275.00

Features

  • Low Insertion Loss
    • 1.75 dB typical for L1 & L2.
  • Higher RF Power Handling
    • Minimum 1W continuous.
  • L1 & L2 GNSS Compatible
    • Supports all L1 and L2 GNSS frequencies.

Description

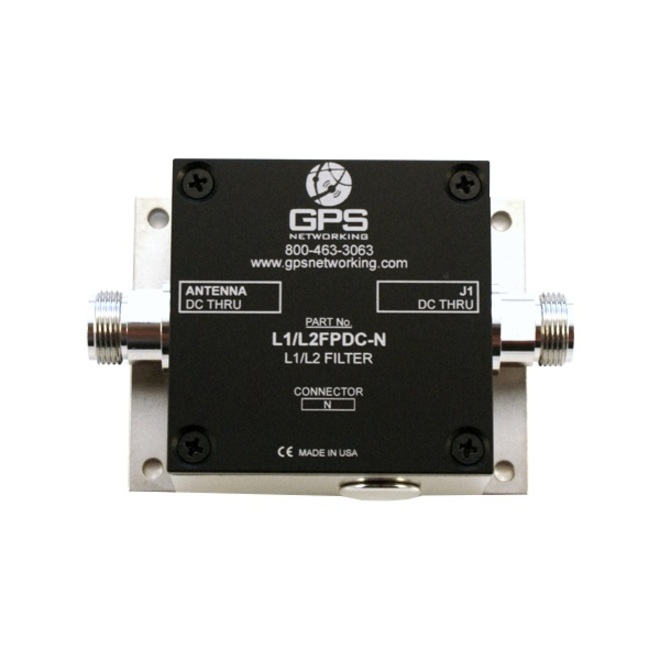

This L1 and L2 Filter Pass DC (L1/L2FPDC) is a one input, one output passive RF filter for all common L1 and L2 GNSS signals. Ceramic resonators are utilized for enhanced high-power performance. The L1/L2FPDC features low insertion loss, low ripple, and high rejection. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna through the ANTENNA port. Custom DC configuration and connector configuration are available upon request.


Use Cases

  • To protect GNSS receivers from out-of-band interference.
  • To protect GNSS receivers from high-power signals.
Required

Connector Type

Connector Type is required. All connectors are female.

Optional

Weatherproofing ($100)

Hermetically Sealed ($100)

EMI Shielding ($150)

Note: EMI Shielding includes Weatherproofing

Networking - External Power Supply ($100)

To purchase the Networking option, you will also need to select Source and Output options below.

Output (Voltage to the Antenna)

You will also need to purchase the Networking option above.

Source (Power Option)

You will also need to purchase the Networking option above.

CLICK HERE FOR DETAILS ON POWER OPTIONS

$275.00
Add To Cart
Call or email us regarding quantity discounts on 5 or more items at 1-800-463-3063 or SALESTECH@GPSNETWORKING.COM
